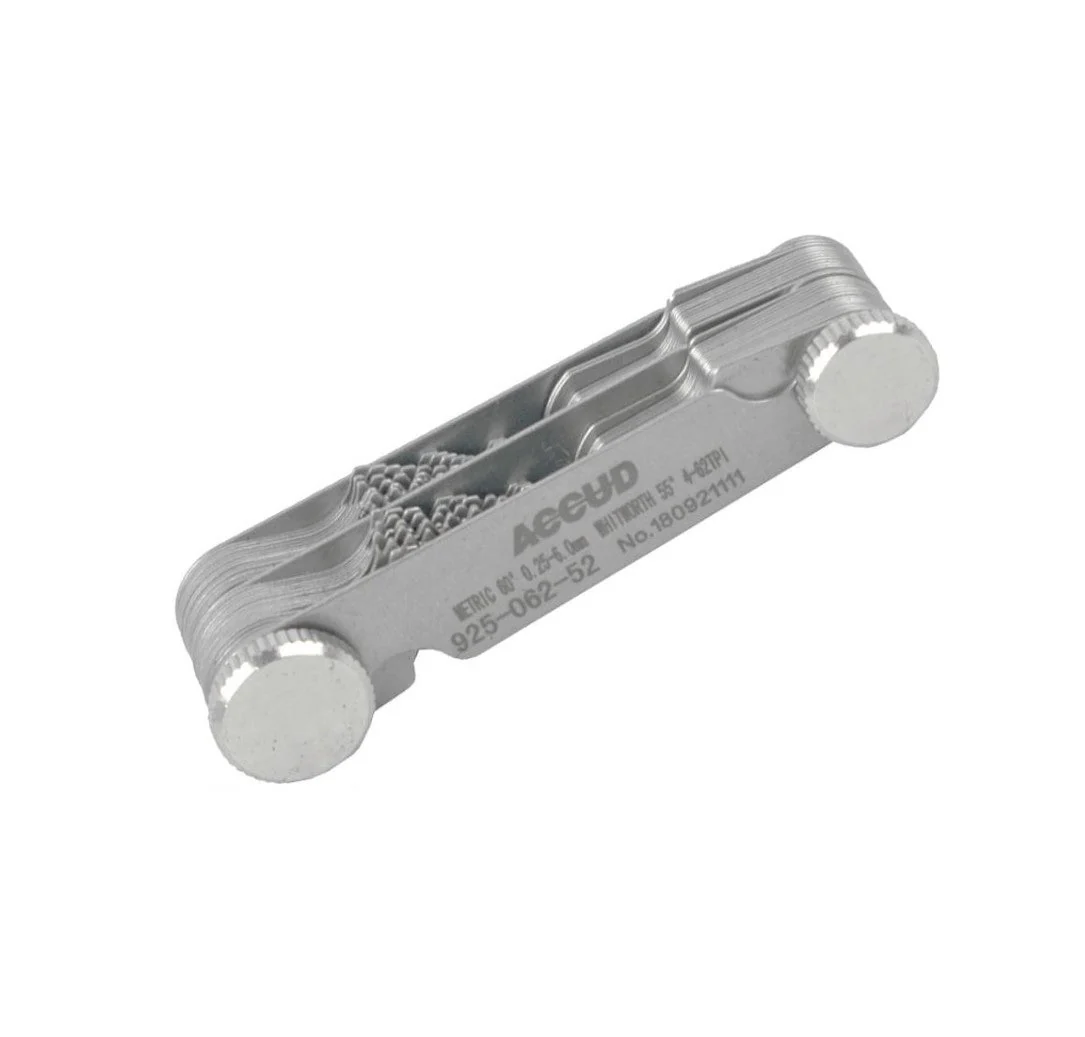

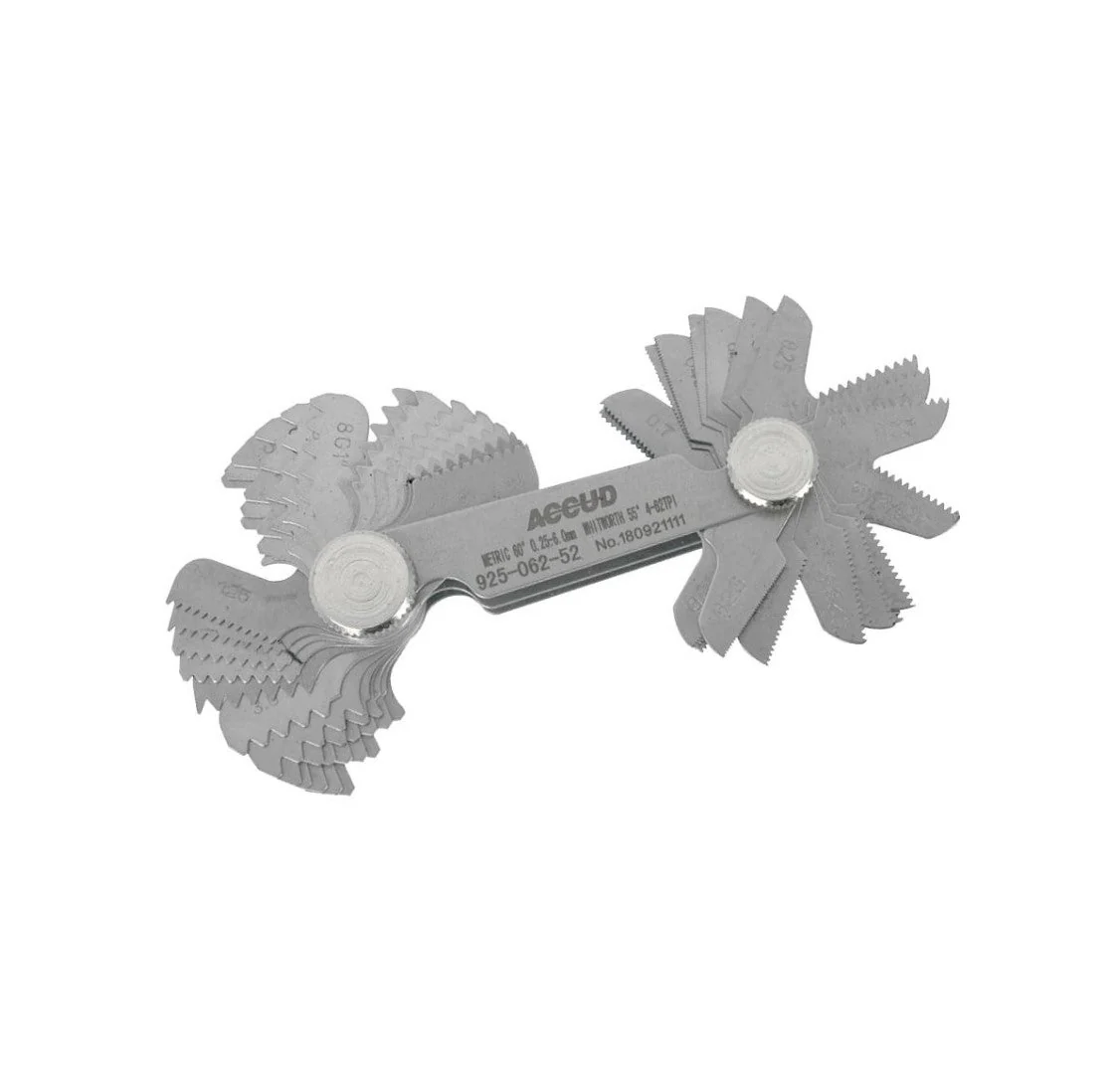

Metric Pitch Gauge 60º & Whitworth 55º 0,25-6,0mm 4-62tpi

The Accud 60º Metric & 55º Whitworth Pitch Gauge makes determining teeth spacing/pitch of spur gears and screws quick and easy. Simply insert the teeth in between the recesses of the gear or screw to determine the pitch.

• Light and compact design
• 52 different sized gauges held securely together within the handle

Specifications

• Graduations Metric 60º Screw: 0,25, 0,3, 0,35, 0,4, 0,45, 0,5, 0,6, 0,7, 0,75, 0,8, 0,9, 1, 1,25, 1,5, 1,75, 2, 2,5, 3, 3,5, 4, 4,5, 5, 5,5 & 6mm
• Graduations Whitworth 55º Screw: 4, 4-1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60 & 62tpi
• Number of gauges: 52 (24 Metric & 28 Whitworth)
• Thread: 60º Metric Screw & 55º Whitworth Screw
• Range: 0,25 - 6,0mm (Metric) and 4 - 62tpi (Whitworth)
• Accuracy: ±0,07mm
