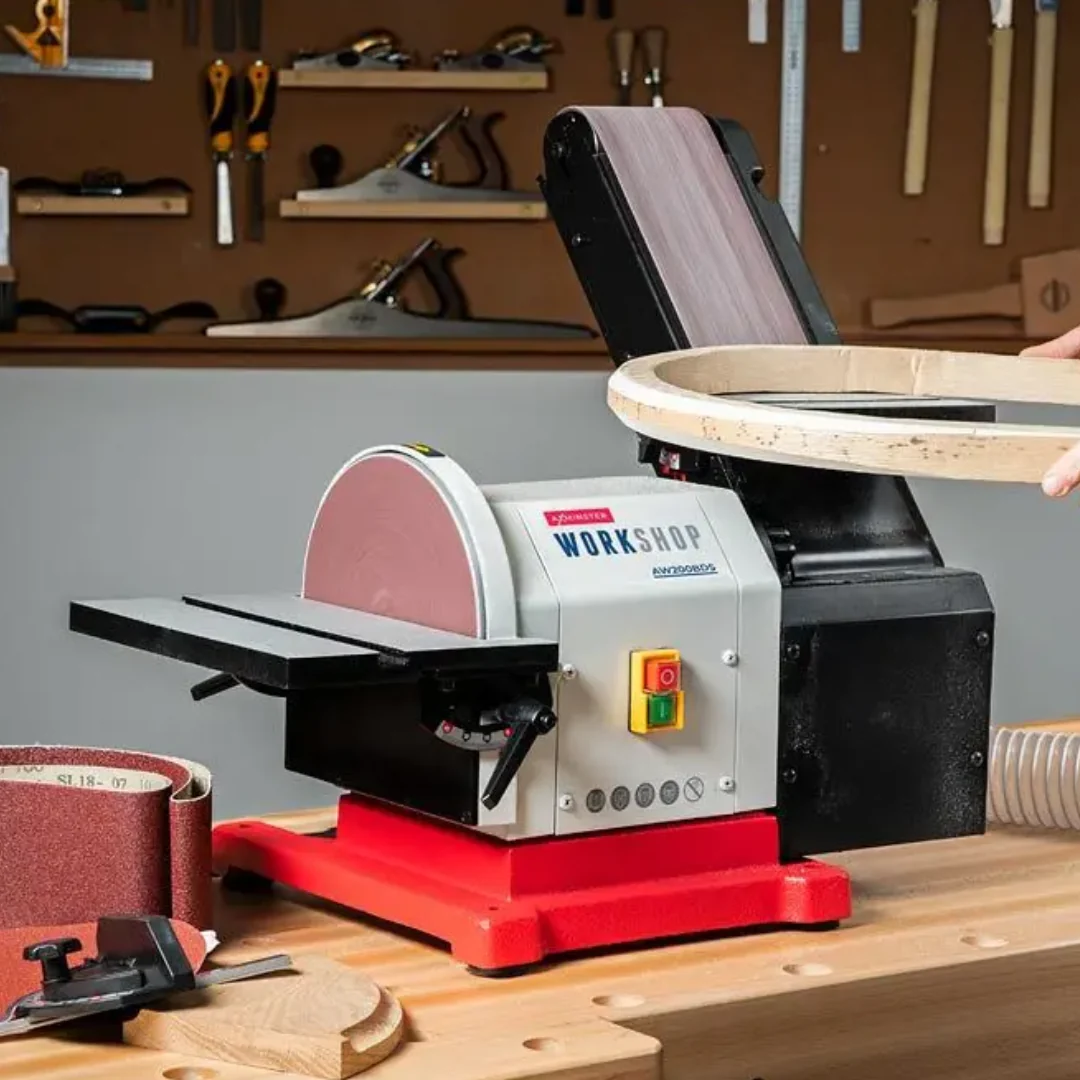

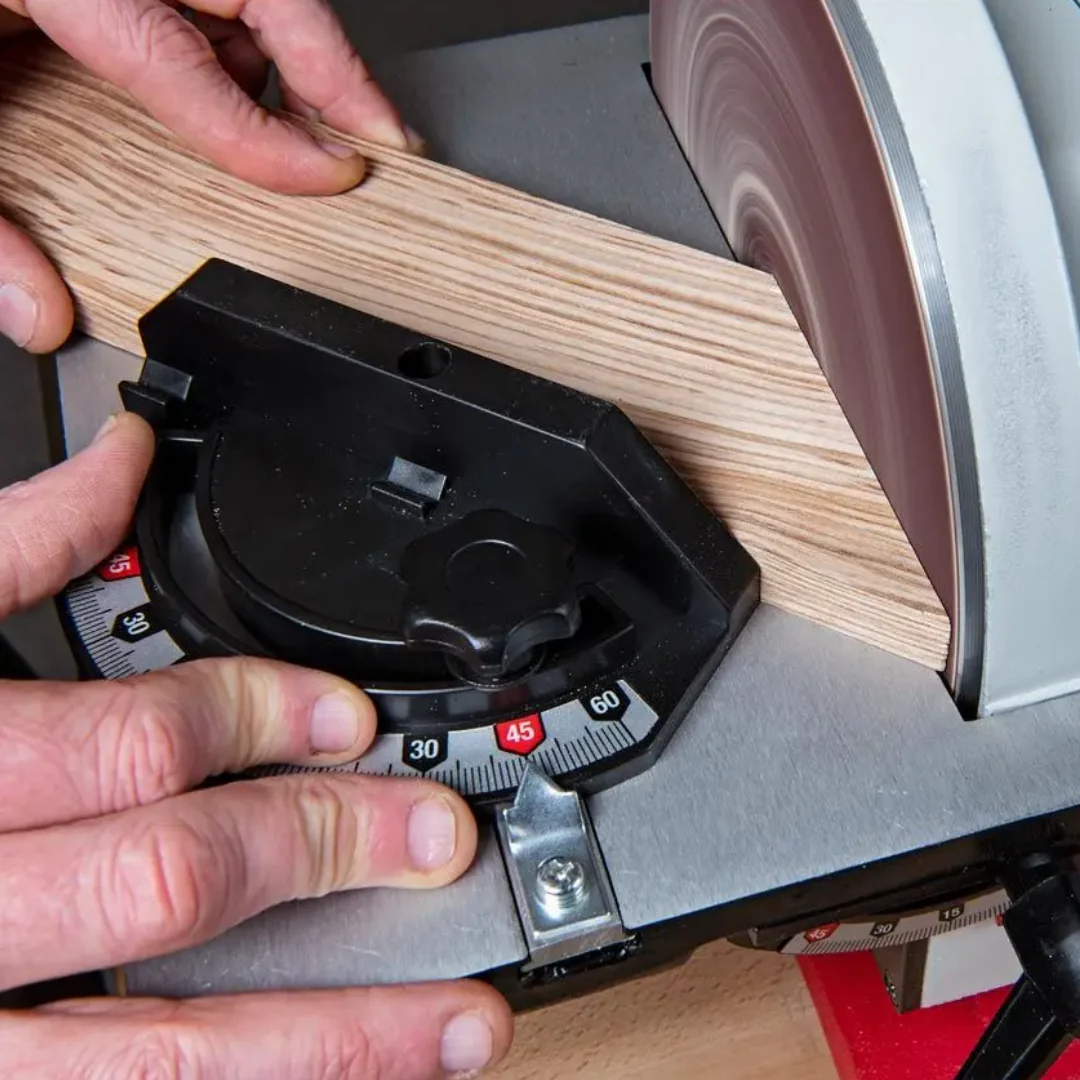

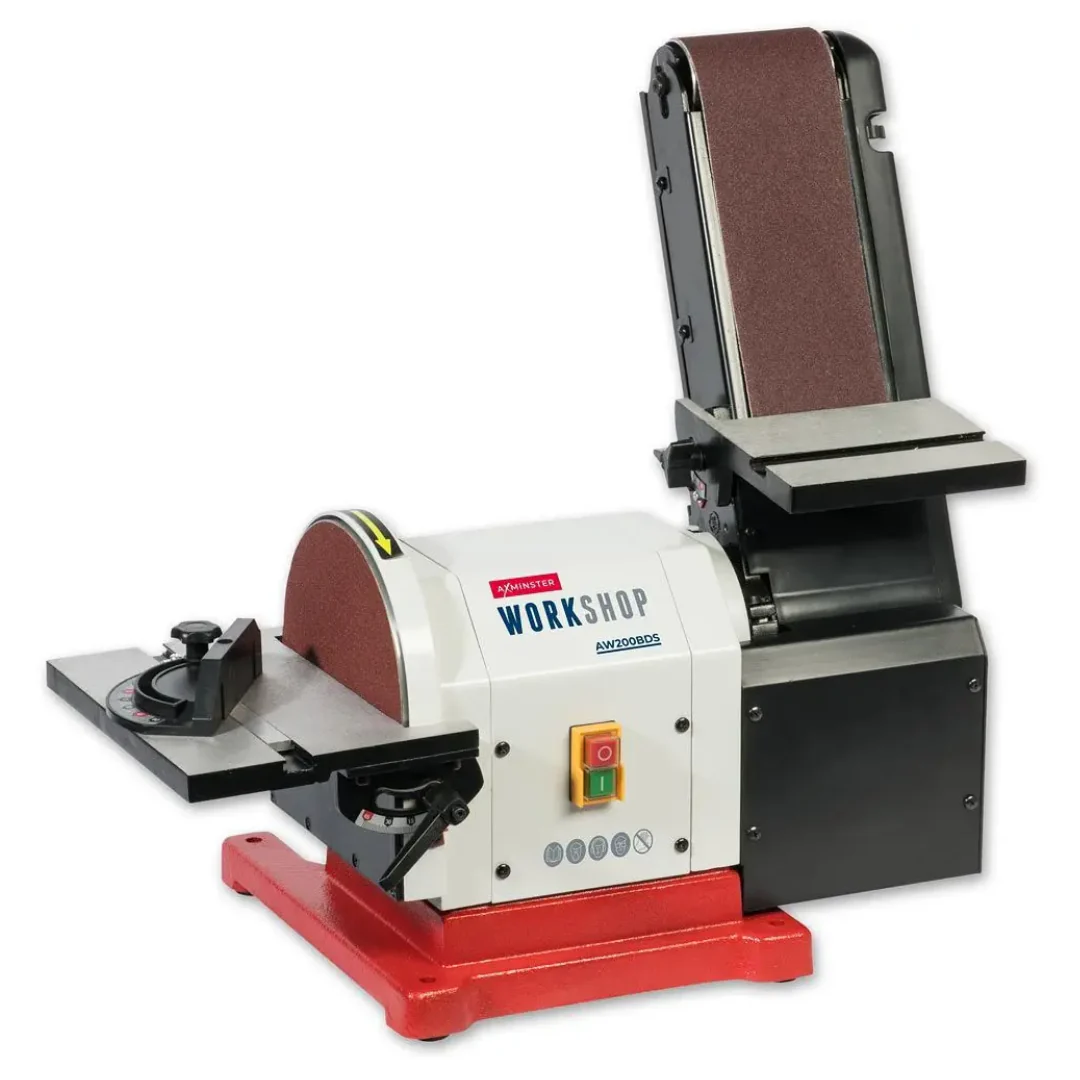

The AW200BDS is a powerful combined 100mm belt and 200mm disc sander. The belt and the disc are driven directly from the motor spindle. As a consequence the machine is much quieter, there are no fiddly drive belts to worry about and does not suffer from a loss of power caused by a drive belt. Both functions feature cast worktables, which pivot from 0° to 45°. A mitre fence is supplied for bevel and compound angle sanding. The belt sanding platen can be used vertically or horizontally or anywhere in between. The machine has a 63mm extraction outlet. A powered fan in the dust outlet port helps produce an airflow around both the belt and disc. When connected to a suitable vacuum extractor almost 100% dust extraction can be achieved. The main body is cast iron, which absorbs vibration and has locating holes with rubber grommets for securing this sander to a workbench. The AW200BDS is supplied with a belt and hook and loop abrasive disc. There is a wide selection of abrasive belts and discs available. Please note these machines are designed and manufactured for sanding wood and similar materials and should not be used to abrade or grind metal.

• Motor – 550W, induction quiet, direct drive

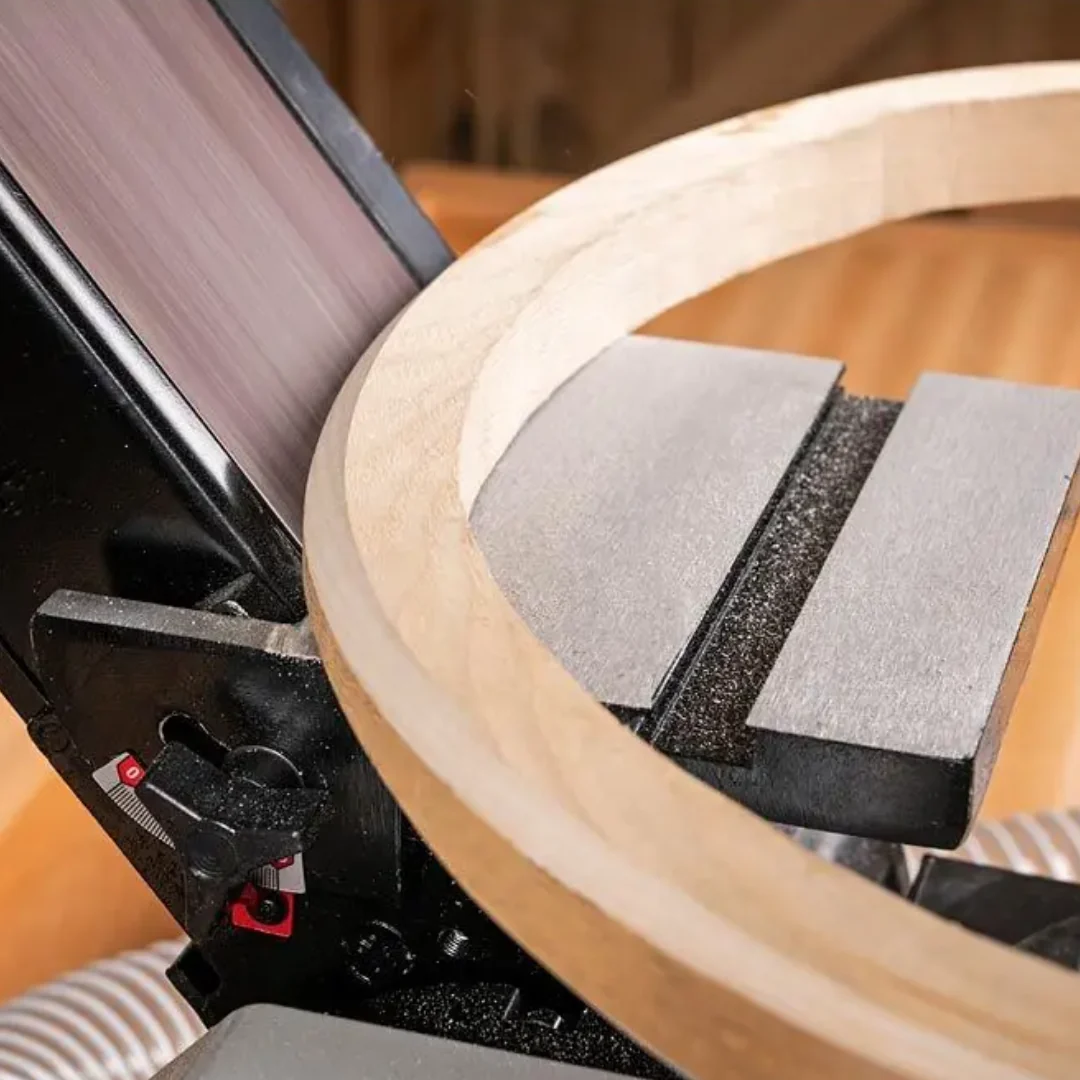

• Versatile sanding positions. belt being used in different positions
• Integrated fan for improved extraction when used with extractor
• Modern design and steel and cast construction

Specifications

Abrasive Belt Size	100 mm x 915 mm
Abrasive Disc Diameter	200 mm
Belt Speed	520 m/min
Disc Speed	2,980 rpm
Dust Extraction Outlet	63 mm
Nett Weight	26 kg
Overall L x W x H	590 mm x 520 mm x 380 mm
Power	550 W
Rating	Home Workshop
Table Size, Belt	170 mm x 120 mm
Table Size, Disc	264 mm x 190 mm
Voltage	230 V
