GAV | Mini Drain Electronic 0.5-50l/hr

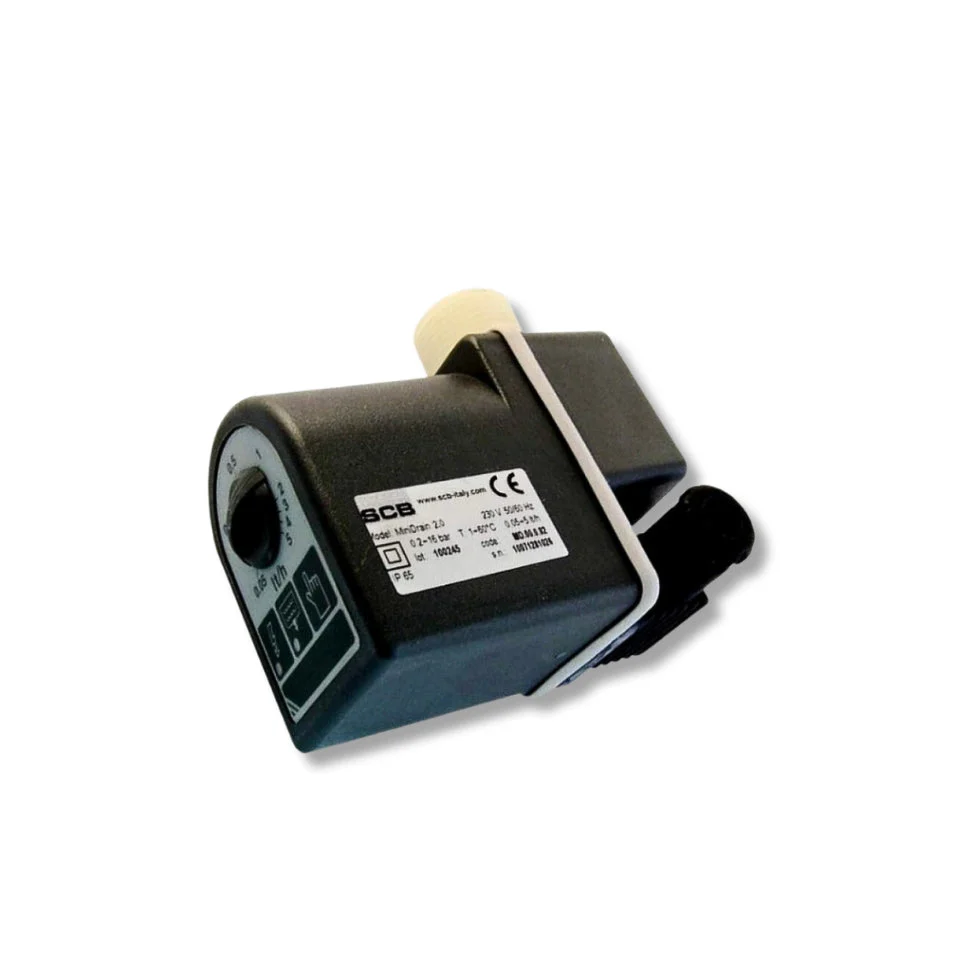

0.5-50l/hr Electronic Mini Drain
Model GAV MD50
Remove the condensate
The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user&s friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for "voltage on" and the other for "valve draining".
- Timed electronic drain: 0.5 to 50l/h capacity
- Suitable for large capacity compressors (500m3/h max delivery)
- Suitable for dryers (950m3/h max)
- Accessories: Ball cock with built-in filler.
Made in Italy
Product Information
Product Information
Shipping & Returns
Shipping & Returns
GAV | Mini Drain Electronic 0.5-50l/hr
GAV | Mini Drain Electronic 0.5-50l/hr
0.5-50l/hr Electronic Mini Drain
Model GAV MD50
Remove the condensate
The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user&s friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for "voltage on" and the other for "valve draining".
- Timed electronic drain: 0.5 to 50l/h capacity
- Suitable for large capacity compressors (500m3/h max delivery)
- Suitable for dryers (950m3/h max)
- Accessories: Ball cock with built-in filler.
Made in Italy
Original: $243.59
-70%$243.59
$73.08Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
0.5-50l/hr Electronic Mini Drain
Model GAV MD50
Remove the condensate
The MiniDrain consists of a servo-assisted solenoid valve that opens upon the command of an electronic circuit according to drain capacity. Drain capacity is preset by means of a knob located on the control panel.
Regulation is extremely user&s friendly thanks to a scale setting in liters of condensate/hour to avoid any inappropriate calibration or a useless waste of compressed air. Valve delivery remains even, independently from the pressure inside the system thanks to an automatic flow regulator.
It is equipped with a test button for function check and two LED, one for "voltage on" and the other for "valve draining".
- Timed electronic drain: 0.5 to 50l/h capacity
- Suitable for large capacity compressors (500m3/h max delivery)
- Suitable for dryers (950m3/h max)
- Accessories: Ball cock with built-in filler.
Made in Italy
