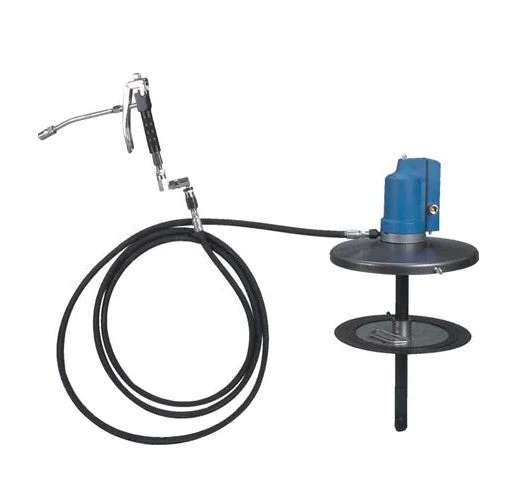

50kg Air Grease Pump

• A compact and practically noiseless air operated 50:1 ratio pump
• Ideal for applications where there is a continuous need for high pressure grease
• Zinc construction makes them suitable for mining applications
• Can be used without an airline lubricator as the motor is non-corroding
• Use with light and self-collapsing grease up to NLGI #2

Supplied complete with

• Drum cover
• Rubber lined follower plate
• 213cm high-pressure hose
• Z swivel and grease control gun

Specifications

• Working Pressure 4 – 10 BAR (60 TO 150psi)
• Maximum Air Pressure 10 BAR (150)psi
• Maximum Outlet Pressure 500 BAR (7500psi)
• Air Inlet Connection 1⁄4” NPT (F)
• Pump Outlet Connection 1⁄4” NPT (F)
• Air Consumption 270 l/min (72 GPM) 9 cfm
• Grease Output (NLGI No. 2 Grease) 0,460kg/min (1lb/min)
• Noise Level 85 db
• Spare Nozzle available - Code GRO2185
