Drill Press DP:20

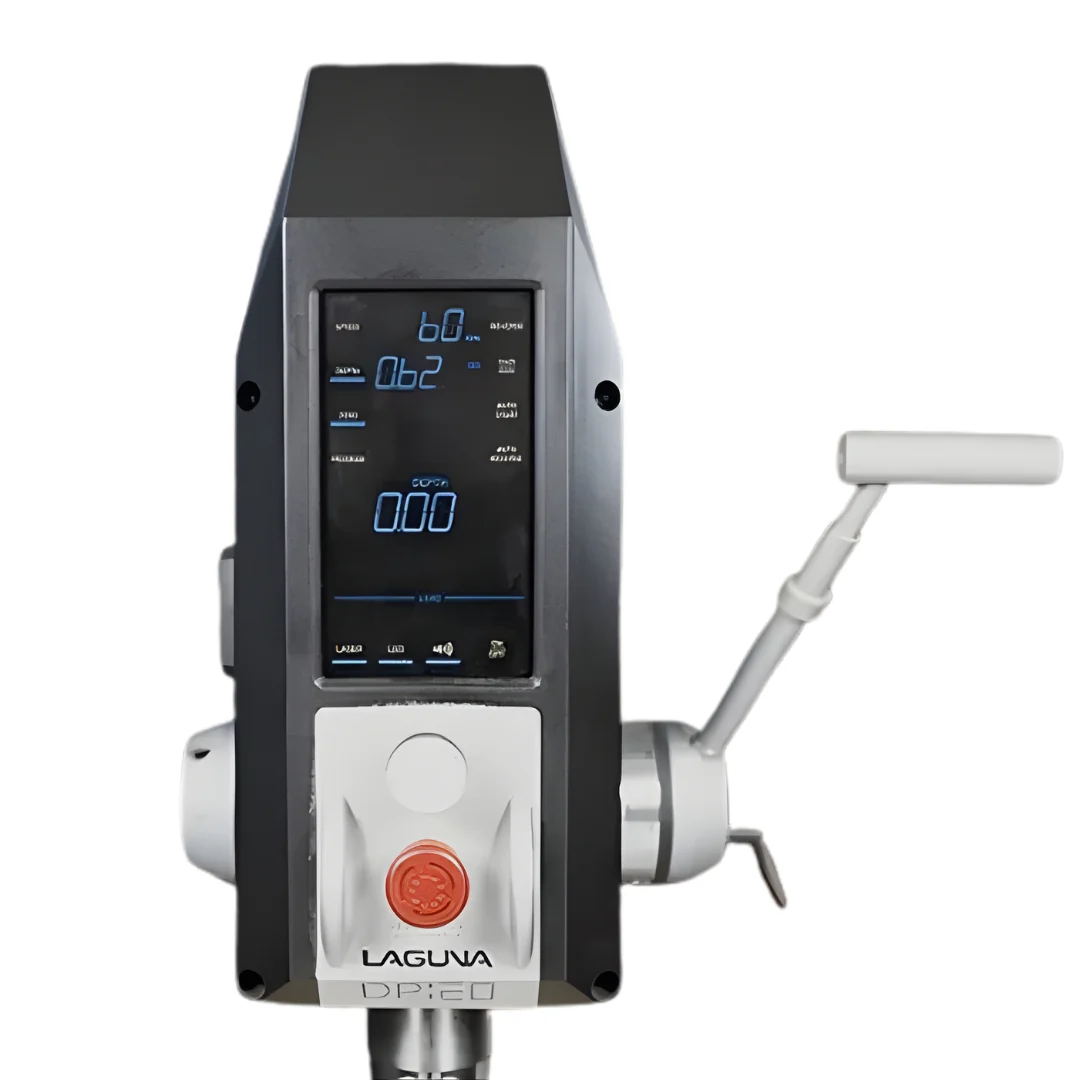

Introducing the new DP:20 – Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in Laguna's classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.
Motor
- DC Brushed
- PWM (Pulse Width Modulation)
Power
- 1.5 HP
- 15 AMP
Voltage
- 110-120 volt
Frequency
- 60 Hz
Wheel Speed
- Electronic Variable 60 – 3600 RPM Forward / Reverse
Power Transfer
- Poly-groove drive belt
Machine Control
- LCD Touch Screen Smart Panel
Base Size
- 22.83″ x 16.92″
Column Diameter
- 3.15″ (80 mm)
Weight
- Net wt 304 lbs. (138 kg)
- Gross wt 326 lbs. (148 kg)
Packing Dimensions
- 72.5″ x 28.5″ x 20″
- 1840 x 725 x 406mm
Memory Settings
- 5 Memory Settings
Swing
- 20″ (1830 mm)
Spindle Taper
- MT2
Quill
- 6″ Travel – 2.6″ Diameter
Chuck Capacity
- 5/64 – 5/8″ (2 – 16 mm)
Table
- 15″ x 22″
- 3 T-slots
- 10 Clamp Holes
Table Movement
- +/- 90 Degree Tilt
- 360 Degree Swivel around column
Spindle to Table
- 30″ Max
Spindle to Base
- 49.5″ Max
Optional Accessories
- Work clamps for T-slot
- Quick clamps for Clamp Holes
- Bolt-on Work Lamps
