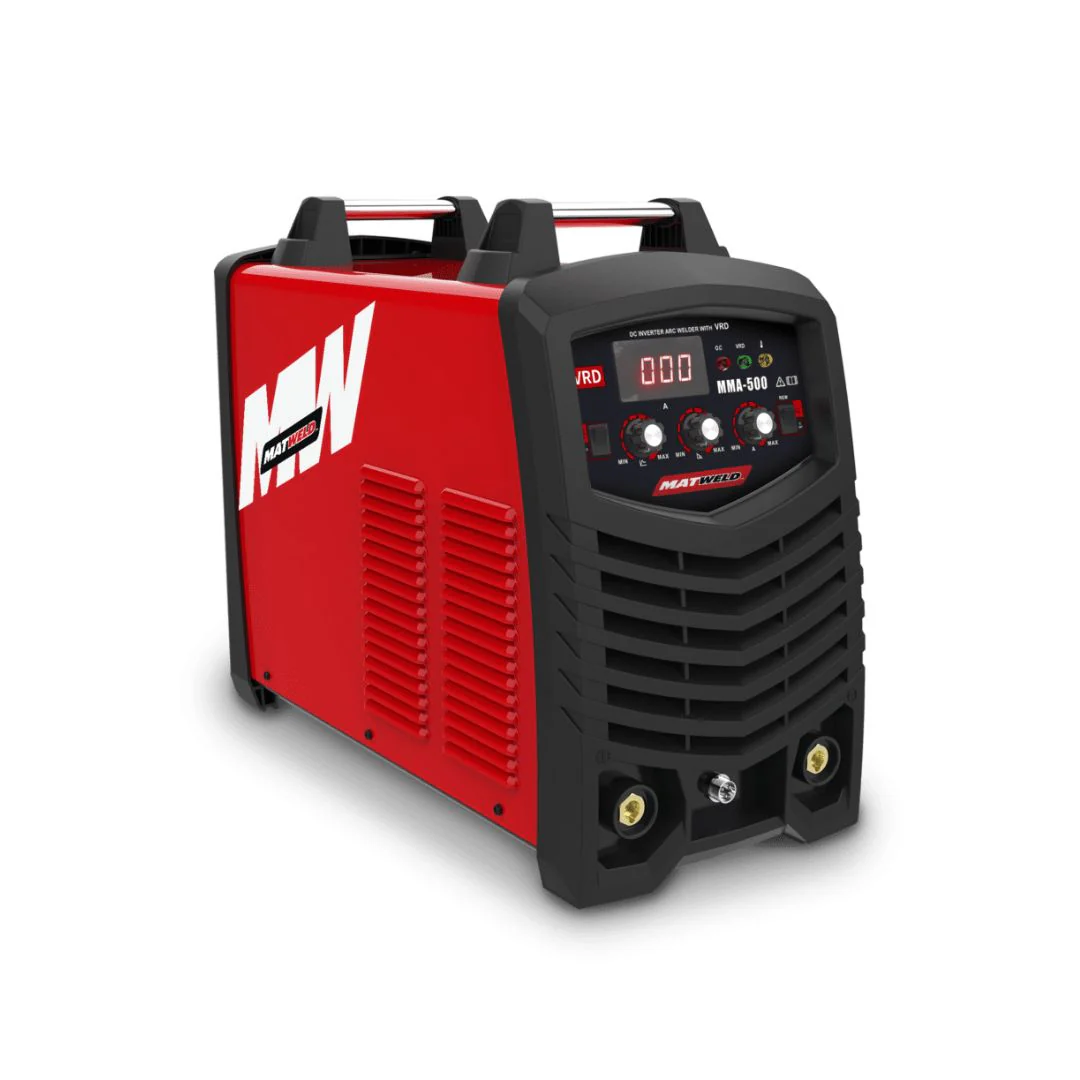

Welder Pro Inverter 500A VRD 380V

The MAT9061N is a robust 500 Amp three-phase 380V DC inverter welder ideal for MMA/TIG welding. It offers a stable arc with excellent striking capabilities, Hot Start MMA, Over Voltage and Over Current Protection, adjustable Arc Force, and is suitable for Scratch Start TIG Welding. This welder comes with a digital display, VRD function, and includes welding cables for immediate use.

Specifications

Rated Input Capacity - kVA	25kVA
Frequency	50/60Hz
Rated Input Voltage	380V
No Load Voltage ±5%	20V
Output Current ±5%	20 – 500A
Rated Output Voltage	38.8V
Duty Cycle % @35°C	60%
Diameter for Electrode	1.6 – 8.0mm
Protection Degree	IP21S
Width	38,5cm
Length	66,5cm
Height	62,0cm
Weight	30,60kg
