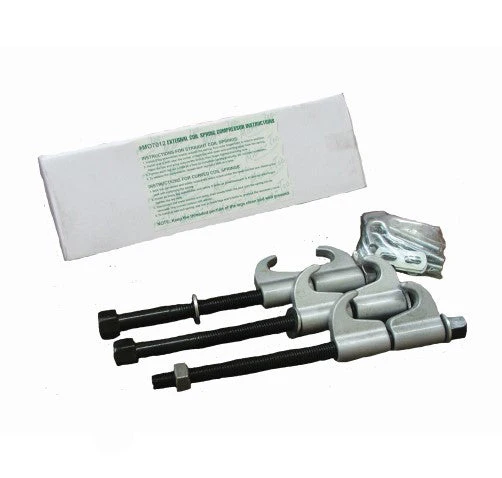

External Coil Spring Compressor

• Removes and installs coil springs where removal through the center of the spring is not possible
• Services both Straight & Curved Coil Springs
• Includes U-bolts & wing nuts
• Maximum diameter spring that the hooks will accommodate is 0.75″
• Diameter of the rod: 5/8″

INSTRUCTIONS FOR STRAIGHT COIL SPRINGS:

1. Install 3 leg assemblies evenly around the spring. Turn nuts finger-tight to hold in position
2. Install one U-bolt near the center of each leg with open end pointing away from the spring
3. Place the bar and wing nuts on the U-bolt, then finger-tighten the wing nuts
4. Tighten each leg nut a little at a time to compress spring gradually. Do not over-compress.
5. To release the compressor, loosen each leg nut a little at a time

INSTRUCTIONS FOR CURVED COIL SPRINGS:

1. With the car raised and safely supported, place a jack under the lower control arm.  Raising the jack will compress the spring
2. Install as many leg assemblies and safety U-bolts as possible (see #1 & #2 above), then finger-tighten the leg nuts
3. Disconnect the lower control arm bolts, then slowly lower the jack until the spring can be removed.  The curved contour will remain
4. To install a new coil spring, use one or more legs and U-bolts to produce the necessary curve
