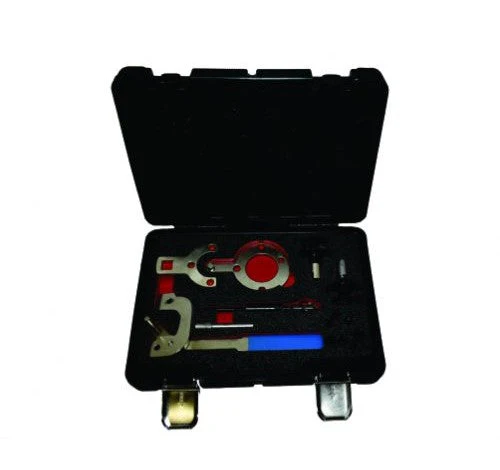

Timing Tool Kit Ford Fiat

• For checking and adjusting the engine timing

Suitable for the following models:
Fiat

• Punto 1.3 JTD Multi-Jet 188A9.000 (2003-2007)
• Panda 1.3 JTD Multi-Jet 169A1.000 & 188A8.000 (2003-2009)
• Idea 1.3 JTD Multi-Jet 199A3.000 & 188A9.000 (2004-2006)
• Doblo 1.3 JTD Multi-Jet 188A9.000 (2004-2006)
• Doblo Cargo 1.3 JTD 188A9.000 (2004-2006)
• Engine Codes: 169A1.000, 169B1.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199B2.000, 223A9.000

Opel (Vauxhall)

• Agila 1.3 CDTi Z13DT (2003-2008)
• Corsa C 1.3 CDTi Z13DT (2003-2007)
• Combo C 1.3 CDTi Z13DT 2003-2009
• Corsa D 1.3 CDTi Z13DTH & Z13DTJ (2006-2009)
• Astra H 1.3 CDTi Z13DTH (2004-2009)
• Tigra B 1.3 CDTi Z13DT (2004-2009)
• Meriva 1.3 CDTi Z13DT & Z13DTJ (2004-2009)
• Engine Codes: Z13DT, Z13DTH, Z13DTJ, Z13DTL

Suzuki

• Ignis 1.3 CDTi Z13DT (2003-2009)
• Wagon 1.3 CDTi Z13DT (2003-2009)
• Swift 1.3 CDTi Z13DT (2003-2010)
• Engine code: Z13DT

Ford

• KA 1.3 TDCi
• Engine Code: FD4

Includes the following tools:

• Counter holding tool for crankshaft pulley, to be used as Fiat, Ford OEM 1871000200 / OEM 303-1469, Opel / Vauxhall OEM KM-662-C
• Crankshaft adjustment tool, to be used as Opel (Vauxhall) OEM EN 46785, Opel (Vauxhall) OEM KM 955, Suzuki 09912-38300
• Camshaft adjustment tool, to be used as Fiat OEM 1871000900 / 1860985000, Ford OEM 303-1472, Opel (Vauxhall) OEM EN 46781, Suzuki OEM 09917-68610
• Chain tensioning lever, to be used as Fiat OEM 1870900400
• Crankshaft locking tool, to be used as Fiat OEM 1870900300
