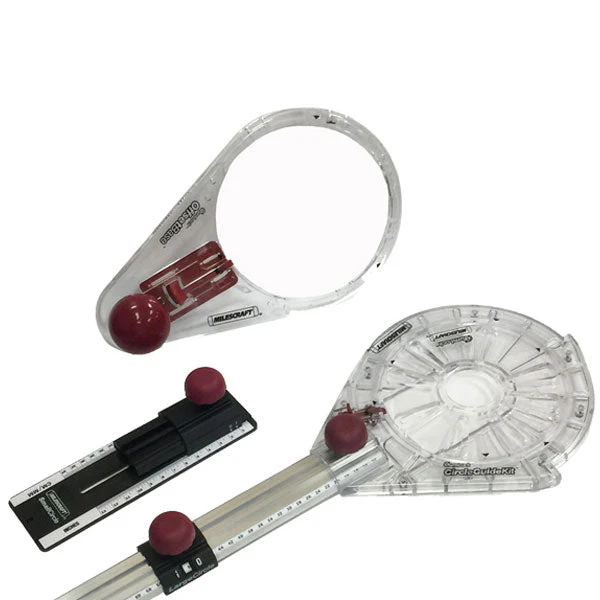

Metric Circle Guide Kit

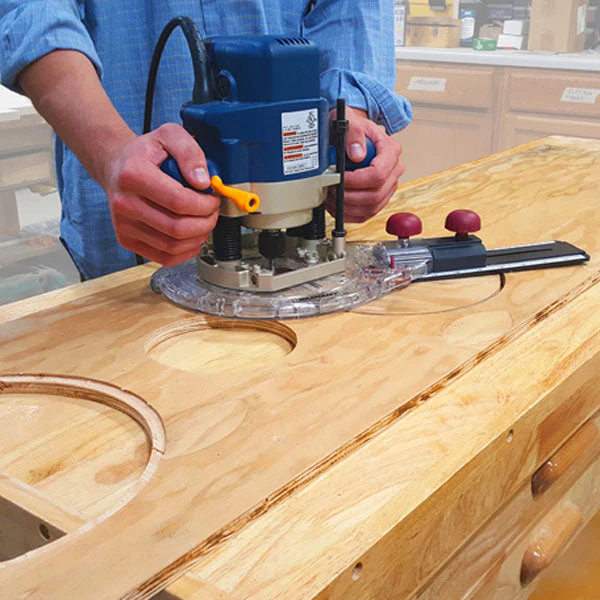

• The Milescraft Circle Guide Kit allows you to cut small and large circles from 38mm Ø to 1320mm Ø
• With the included TurnLock™ base plate, this jig is compatible with most routers
• There is no longer a need for a homemade circle cutting jig, the Circle Guide Kit does it all for you and includes everything you need to cut your desired circle
• It also includes a BONUS Offset Base for finishing edges on your workpiece

Features - Small Circle Guide:

• Built-in Imperial and Metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts

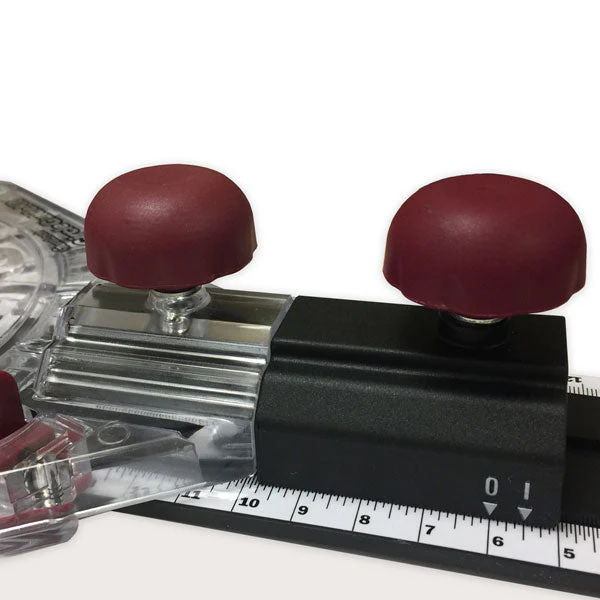

• Quickly and easily attaches to the included TurnLock™ Circle Guide Head
• Cuts circles from 38mm to 305mm in diameter

Features - Large Circle Guide:

• Built-in Imperial and Metric scales, with an easy readout window for setting the diameter of both your inside and outside cuts
• Quickly and easily attaches to the included TurnLock™ Circle Guide Head
• Cuts circles from 254mm to 1320mm in diameter

Features - BONUS Offset Base:

• 330mm Offset Base provides added stability when finishing the edges of your workpiece with your router
• Oversized handle knob is easy to grip, providing excellent and safe control of your router

Features - Patented TurnLock™ Technology:

• Allows for fast tool-free guide bushing and router attachment exchanges
• Thumb-activated lock/release mechanism enhances speed and safety when changing tools
• The TurnLock™ base plate accepts all Milescraft® bushings

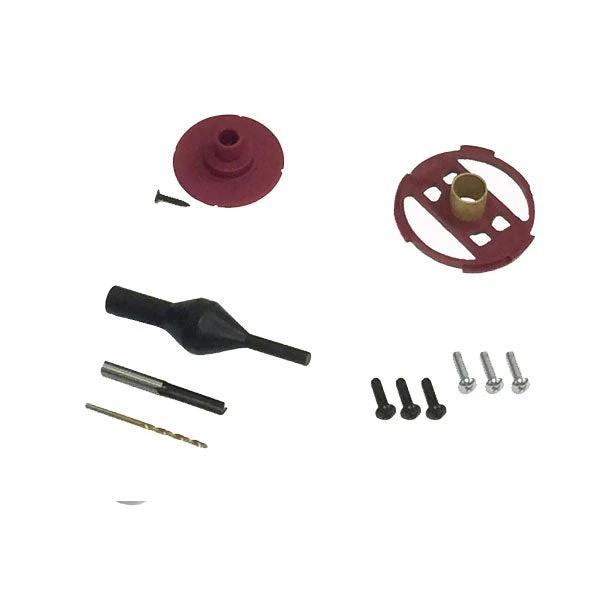

Included:

• Small Circle Jig
• Large Circle Jig
• Offset Base
• TurnLock™ Base Plate
• Router Bit: 1/4" (6.35mm) Straight Router Bit
• Drill Bit: 3/32" Brad Point
• Centering Pin
• Bushing: 5/8" (  mm) Long Metal Nose Bush
• Mounting Hardware
• Material: Polycarbonate & Metal
• Weight: 4.4lbs

For an online copy of the Instruction Manual for the above product, Click here.
