Hinge Mate 300 Door Mortise Kit Router Jig 1213

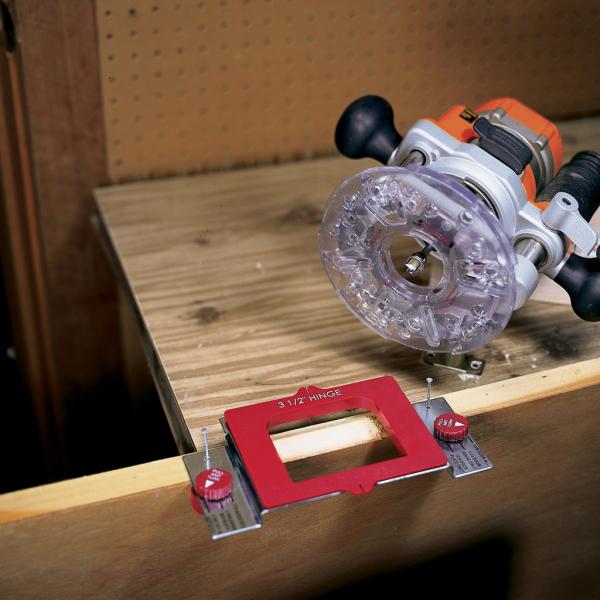

• The Milescraft Door Mortising Router Jig is allows you to increase security and privacy in your home by replacing doors without damaging the door or jamb
• By routing matching mortises for hinges into the door and into the jamb, as well as Hinge Plate, Latch Plates & Strike Plates, you won’t have to tear a hole in the wall just to hang a better wooden door

Features

Steel Template Frame:

• Durable Steel Frame with adjustable cams to allow for 1-3/4 (44.5mm) and 1-3/8" (35mm) Door Settings
• Can be mounted on Bothe the Door and the Jamb

1/2" included Router Bit:

• Tip is made of Durable Tungsten Carbide
• Router Bit with Ball Bearings eliminates the need for Guide Bushings

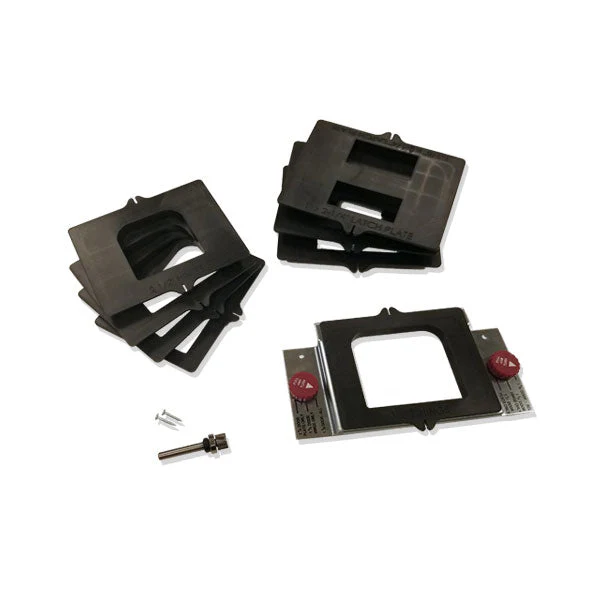

Templates:

• Contains Templates needed to route Hinge, Strike Plate, and Latch Plate Mortises

Hinge Template Sizes:

• 2-1/2"(63.5mm)
• 3"(76.2mm)
• 3-1/2" (88.9mm)
• 4" (101.6mm)
• 4-1/2" (114.3mm)

Strike Plate Template Sizes:

• 1-1/8" x 2-3/4" (28.6X70mm)
• 1-1/2" x 2-1/4" (38X57mm)

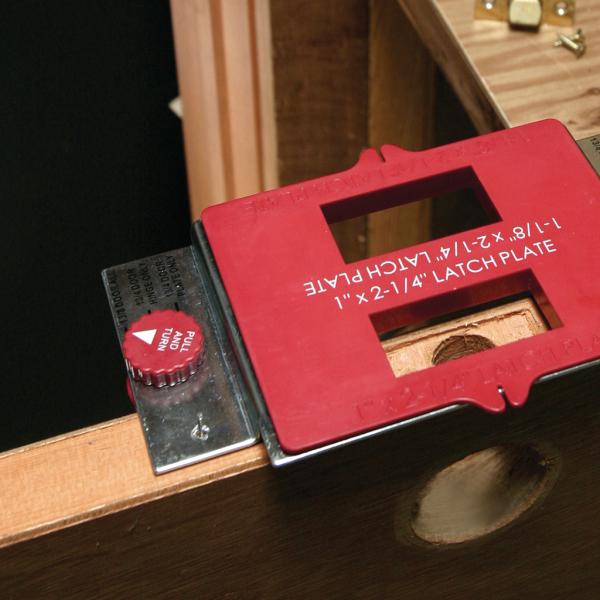

Latch Plate Template Sizes:

• 1" x 2-1/4" (25.4X57mm)
• 1-1/8" x 2-1/4" (28.6X57mm)
• 1-1/8" x 2-3/4" (28.6X70mm)

Templates Rotate to achieve either a 5/8" (15.88mm) or 1/4" (6.35mm) Radius

Please Note: Some chiseling is required for templates with square corners. CornerChisel is sold separately
