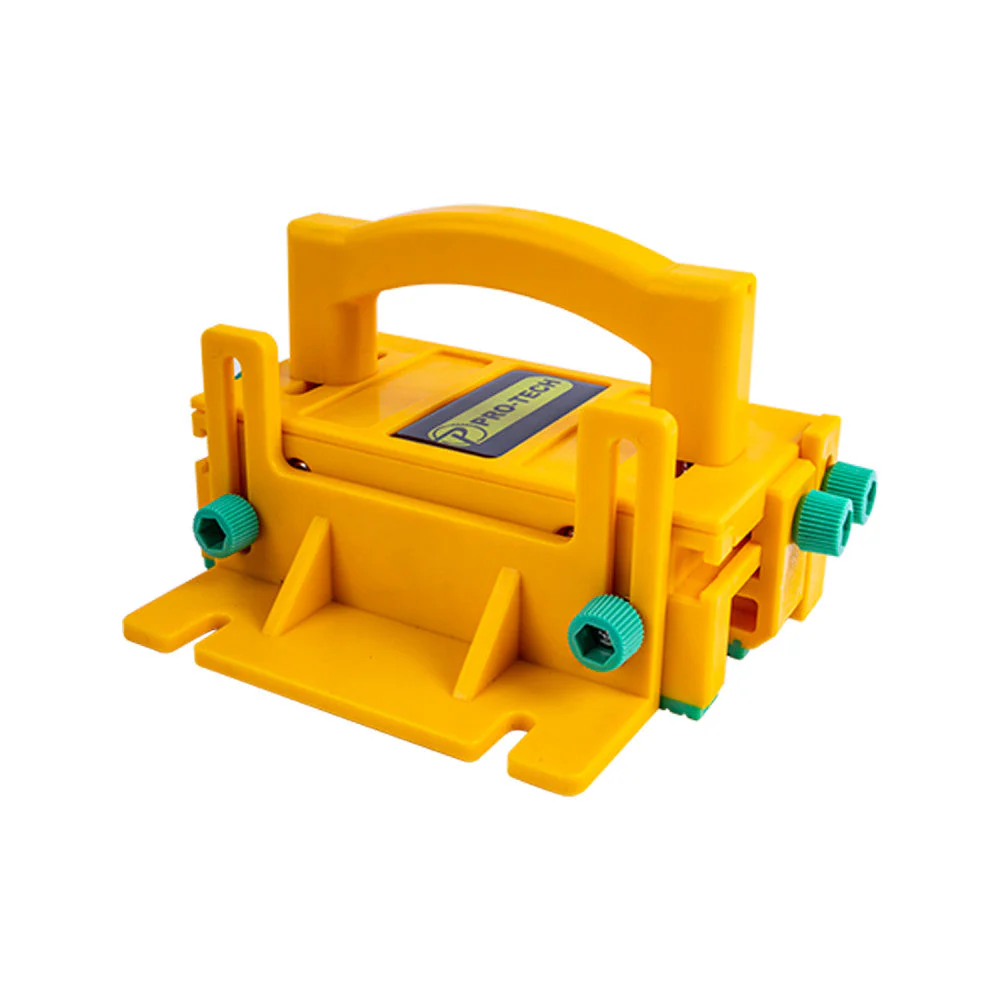

Adjustable Push Stick

• 217mm(L) x 141mm (W) x 121mm (H)
• Push Stick weight 0.67kg

Contents

• 1 x Adjustable push stick
• 3 x Thumb screws
• 1 x Guide support
• 1 x Push tab
• 1 x 4mm Hex wrench

Specifications

• 175mm Length grip support legs
• 1 x 1⁄4”(6.35mm) , 1 x 1⁄2”(12.7mm) & 1 x 1 1⁄8” (28.57mm) width
• Support grip legs
• 30mm(H) x 70mm(W) Tunnel opening
• 55mm Guide support height adjustability
• 45mm Lateral handle adjustability
• 10mm Push tab height adjustability

Material

• Push stick body: Hardened plastic
• Grip material: Rubber
• Fasteners: Stainless Steel

Features

• Fully adjustable for optimized comfort and functionality
• Powerful high-friction durable grip material for extreme hold on a wide variety of materials such as hardwoods, composites, plastics and Aluminium
• Supports different widths and thicknesses of materials
• Durable universal design
• Protect hands by acting as a blade guard shielding the hands during cutting operations
• The adjustable centre leg allows for varying material width adjustment and allows the push stick to pass over the blade controlling both the block and offcut side throughout the cut
• Balance support is adjustable to cater for different material thicknesses keeping the stick square
• Portable and easy to handle

Application

• Used to provide support whilst cutting on table saw, router table, jointer and band saw
• Used in Woodworking and DIY

Assembly

• Adjust the balance support to match the thickness of the workpiece
• Move the centre leg to the other side of the blade to control the offcut side
• Keep the workpiece tightly against the fence during the cut
