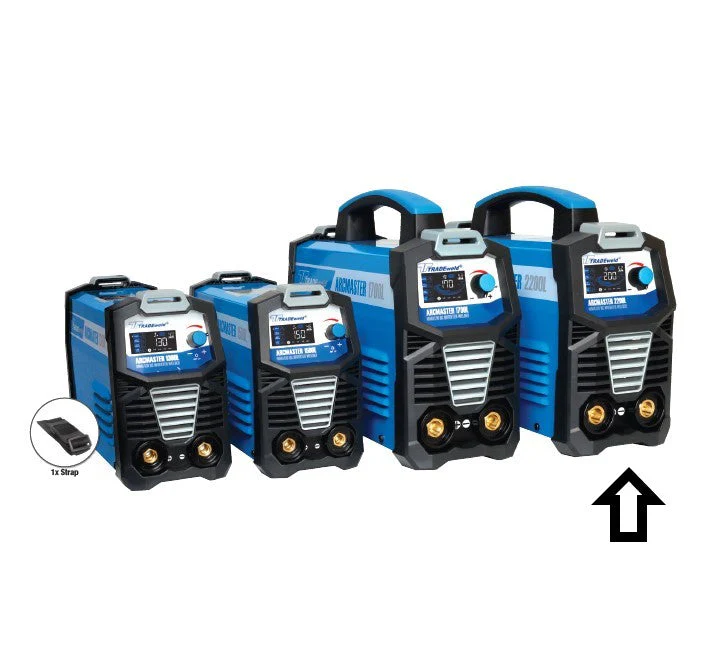

Arcmaster Inverter Welder 2200L

Manufactured to the highest standards using IGBT technology.

• LCD Smart Display
• Compact, Lightweight & Portable
• DC Current Output
• Excellent Welding Characteristics
• Less Power Consumption
• Robust Construction
• Hot Start
• Arc Force
• Welding Rod Size Indicator
• Steel Size Indicator
• VRD
• Lift TIG

Included

• 1X Set of Cables
• 1X handheld Face Shield
• 1X Wire Brush

Specifications

• Model: ARCMASTER 2200L
• Model No.: MCOW4023
• Rated Input Voltage: AC220V±10% 1 Phase
• Frequency (Hz): 50/60
• Rated Input Current (A): 32.3A
• Output Current (P): 200A
• Rated Output Voltage: 28V
• No Load Voltage: 60V
• VRD Voltage: 14V
• Duty Cycle: 60%
• Efficiency (%): 85%
• Power Factor: 0.93
• Protection Class: IP21S
• Cooling Method: Fan-cooled
• Dimension L x W x H (mm): 430x180x345
• Gross Weight (kg): 4.6
